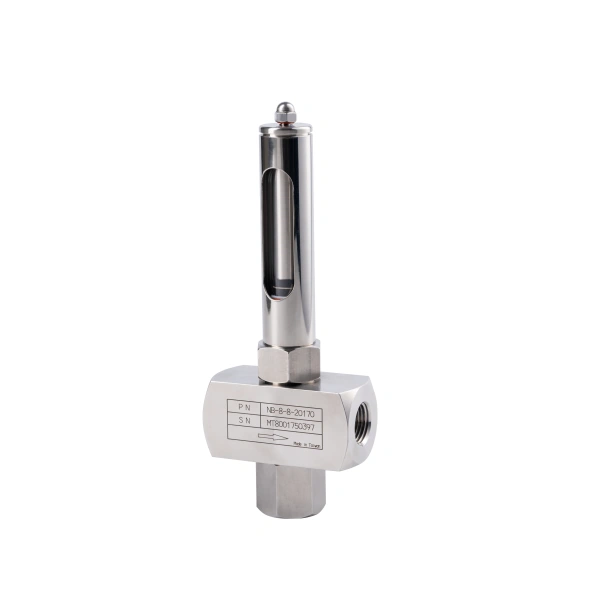

MTA-800
Description：
MTA-800 series is a metal tube variable area flow meter designed for extreme operating conditions. It is made of stainless steel body with PTFE O-rings which gives corrosion resistance and reliable operation uo to 1500 psi (10 bar) and 400°F (204°C). A special float design helps to quickly steady readings,and provides true readings down to atmospheric pressures。
Download file
| Model | MTA-800 | |
| Fluid | Water, air | |
| Function | Local indication Alarm output |
|
| Measuring range (water) |
Min | 1 to 6 GPH |
| Max | 2 to 10 GPH | |
| Measuring range (air) |
Min | 6 to 30 SCFH |
| Max | 10 to 50 SCFH | |
| Process connection | NPT : 1/2 , 3/4 | |
| Standard material | SUS316 | |
| Accuracy | ±技術提供 F.S. | |
