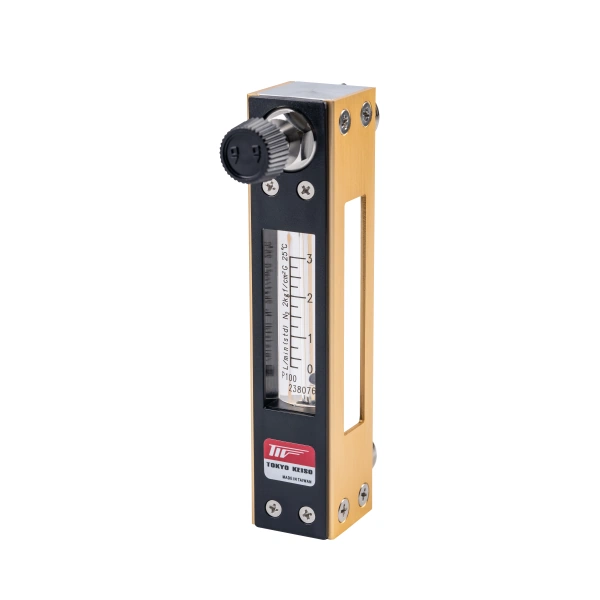

P-010
商品簡述：
檔案下載
| Model | P-010 | |
| Fluid | Gas,Liquid | |
| Function | Local indication Alarm output |
|
| Measuring range (water) |
Min | 0.1 to 1 L/min |
| Max | 3 to 30 L/min | |
| Measuring range (air) |
Min | 2.5 to 25 L/min(nor) |
| Max | 6 to 600 L/min(nor) | |
| Process connection | Rc 3/8 | |
| Standard material | SUS316 | |
| Installation length | 200mm | |
| Alarm | UL-approved reed switch | |
