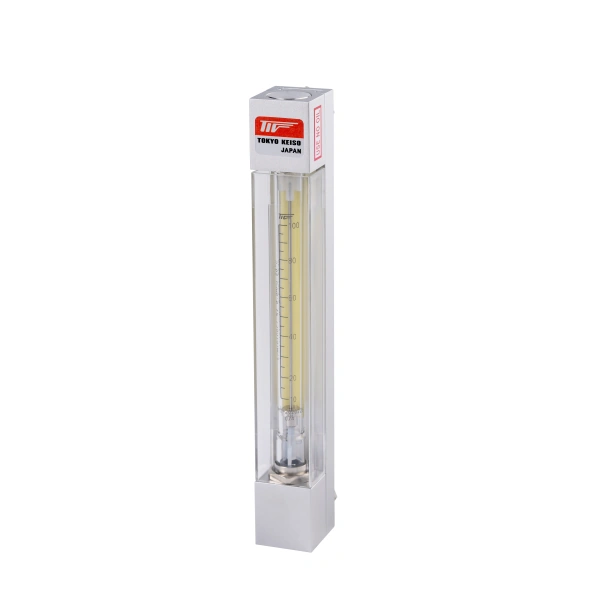

P-200
商品簡述：
檔案下載
| Model | P-200 | |
| Fluid | Liquid,Gas | |
| Function | Local indication Alarm output |
|
| Measuring range (water) |
Min | 5 to 50 mL/min |
| Max | 0.2 to 2 L/min | |
| Measuring range (air) |
Min | 5 to 50 mL/min(nor) |
| Max | 6 to 60 L/min(nor) | |
| Process connection | Rc 1/8 , Rc 1/4 | |
| Standard material | SUS304/SUS316 | |
| Installation length | 200mm | |
| Alarm | UL-approved reed switch Optical alarm unit |
|
